 my 20v'ed ae86 swap write-up...First  1 2 3 >  Last
Author Post
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 my 20v'ed ae86 swap write-up... Reply  Edit


theres a ton of threads about small things in general about this swap, so heres my attempt at a full, step-by-step instruction on how to do it starting with your ae86 GTS. theres going to be plenty of info links, pics, etc. if im missing something or youre unsure, ask away.
this is for BT electronics using a MAP sensor
*if you have an sr5, start here, and when you have converted, come on back over...
http://forums.club4ag.com/zerothread?id=6239
^big thanks to Andrew aka assassain10000 for that supreme write-up
-----------------------------------------------------------------------------------------------------------------------
PART 1-ORGANIZATION
*this step is key to any swap, or major work for that matter, that you are doing to your car. preparation is key, and makes things go smoothly...usually*
step 1-buy yourself a 20v. either Silvertop(ST) or a Blacktop(BT) will do.
ST-
BT-
you would be best off doing an overhaul to be sure gaskets and seals are in good working order(i will add part numbers at a later date for misc gaskets and seals, since some are cross-referenced to usdm cars).
-----------------------------------------------------------------------------------------------------------------------
step 2-start a checklist, one for parts needed, one for work needed.
*heres where it gets tricky. you need to figure out costs of parts/labor and see which options are best for you and your wallet*
parts needed
-tall block with ITB's
-20v engine harness
-GTS underdash harness
-pilot bearing for transmission input shaft(fwd doenst have this, need it for rwd) p/n 90363-12003
^
Quote, originally posted by Sam-Q »
- A spigot bearing can be sourced from any bearing shop cheaply, just ask for a 6001-2RS

-20v coil/ignitor(didnt get one with the motor? go to the jy and look for a mid 90's 4runner, grab the bracket too)
coil p/n 90919-02197
igniter p/n 89621-12050 (must have a large "201" in green writing on it)
-ISCV
-MAP sensor (if it didnt come with one, grab one at the jy from a 93/97 corolla. either 4afe or 7afe is fine. p/n 89420-02010)
-20v dist with cap and rotor(if using the oem ignition system-more on that later)
-VVT sensor
-TPS(doenst matter which you have for the swap-more on this later)
ST p/n 89452-12080 (same as 2JZGTE, 3RZFE, 2RZFE, 5VZFE)
BT p/n 89452-12080/22080
-O2 sensor (or buy one for a 1993 MR2 with the 3sgte motor, OBX sells one for about $60)
ST p/n 89465-19495 / 89465-12290
BT p/n 89465-19685
To Do
-put in pilot bearing
-freshen motor up
-drop in motor
-coolant flow(fwd w/water lines, or rwd w/stock gts parts-more on that later)
-spark(cut/smash firewall/dist relocation kit, COP conversio-more on this later)
-wiring(make your own/slice your own, Dr.Tweak, mr220v, send it to me...)
-fill w/oil and coolant
-etc...<br /><br />
Modified by morgan at 10:08 AM 2/7/2012<br /><br />
Modified by morgan at 9:59 PM 9/9/2012<br /><br />
Modified by morgan at 2:08 PM 11/9/2012<br /><br />
Modified by morgan at 2:09 PM 11/9/2012<br /><br />
Modified by morgan at 2:38 PM 11/9/2012

Modified by morgan at 2:53 PM 11/9/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.


morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


PART 2-Motor Prep
-----------------------------------------------------------------------------------------------------------------------
now is whan you want to freshen the motor up. while its out of the car, do your maintanance. new HG, valve seals, water pump gaskets, etc...now is when you want to get machine work done. disassemble everything if needed, always good to check stuff.
an engine stand helps wonders. pick one up at Harbor Freight before you start for under $60. pays for itself after one use.
heres a link to the BT manual for reference on doing such work, proper torque sequence, etc, everything is in there...save this to your computer.
http://www.locost7.info/mirror/4age_blacktop.php
only problem with the BT manual, the instructions for setting your cam gears and timing belt is off. heres a thread i started to show you how to set it up correctly.
http://forums.club4ag.com/zerothread?id=87830
heres a write up i did on replacing your valve seals...
http://www.ectoyotas.com/%20fo...t=132
i recommend changing your timing belt at this point. if you have a BT, youre out of luck and need to source an oem one. have a ST? then go to your local parts store and order a Buick Skylark belt. ????! i know, but its true, im running one right now.
GoodYear #40081(can be cross-referenced to another manufacturer at your local auto parts store)
it costs about $20.
as for all other gaskets and seals, heres the p/n's...
****C.R.=cross referenceable to usdm parts***
BT engine overhaul gasket set 04111-16330
ST engine overhaul gasket set 04111-16210
BT HG 11115-16111
ST HG 11115-16110
BT/ST spark plug tube seal(4x) 11193-16010(C.R.)
BT/ST seal washer for valve cover bolts(3x) 90210-09016(C.R.)
BT valve cover gasket 11213-16021
ST valve cover gasket 11213-16020
BT/ST cam shaft oil seals-exhaust 90311-35013(C.R.)
-intake 90311-40016
BT rear main seal retainer gasket 11383-16010(C.R.)
ST rear main seal retainer gasket 11383-16010(C.R.)06/1991 to 04/1992
ST rear main seal retainer gasket 11383-16010(C.R.)05/1992 on...
BT/ST/16v rear main seal 90311-70007(C.R.)
BT/ST PVC valve cover grommet 90480-18001(C.R.)
BT/ST valve seals-intake 90913-02093(C.R.)
-exhaust 90913-02092(C.R.)
BT oil pump gasket 15197-15030
ST oil pump gasket 15197-15012(C.R.)
BT oil pump/crank seal 90311-32020(C.R.)
ST oil pump/crank seal 90311-32018(C.R.)
BT oil pump strainer gasket 15149-16010
ST oil pump strainer gasket 15149-15011(C.R.)06/1991 to 05/1992
ST oil pump strainer gasket 15149-16010(C.R.)06/1992 on...
BT/ST water pump housing gasket 16124-16040(possible C.R.)
16v rwd water pump housing gasket 16124-15010(usdm part)
BT/ST/16v rwd-water pump housing to block o-ring 96711-24035(C.R.)
BT ITB gasket to head 17177-16030
ST ITB gasket to head 17177-16020
BT exhaust mani gasket 17173-16030
ST exhaust mani gasket 17173-16020
BT/ST dist. cap 19101-16010
BT/ST dist. rotor 19102-16010
BT/ST dist. o-ring(seals to head) 90099-14091(C.R.)
BT/ST VVT cam gear to cam shaft o-ring 90301-14007(C.R.)
BT/ST injector-top/bottom insulators(8x) 23291-75010(C.R.)
-middle o-ring(4x) 90301-17007(C.R.)
-bottom o-ring(4x) 90301-14006(C.R.)
BT/ST spark plugs(4x) BKR6EP11 or PK20R11
16v rwd pilot bearing(NEEDED!) 90363-12003
theres also a cheap replacement oil filler cap by Stant, p/n-11113. cost me $7 at Pepboys and it works just like it should. http://shop.advanceautoparts.c....html

-----------------------------------------------------------------------------------------------------------------------
get all this stuff done and assembled, and then engine prep. is complete. continue to bolt on anything that you can at this point... motor mounts, manifolds, pulleys/belts, dist.(if using one), coolant parts at rear of head, etc...
-----------------------------------------------------------------------------------------------------------------------
*dont forget to put in your pilot bearing, this is very important. go to toyota and get a new one. make sure you tap it in with a socket thats as big as the bearing! you dont want to put pressure on the small, inner race, of the ball bearing cover. only the outer race!

*thanks to runkillerrabbit @c4ag for pic

heres another p/n reference thread by HASportAE86 @c4ag
http://forums.club4ag.com/zerothread?id=36977
parts reference/sensor info/"how to clean the ISCV" @ 4age20v.blogsome.com
http://4age20v.blogsome.com/ca...umber

Modified by morgan at 9:50 PM 12/16/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


PART 3-Cooling
-----------------------------------------------------------------------------------------------------------------------
so theres 2 options on this...either keep the FWD flow and buy a water line kit, or change stuff around and go with a RWD flow. Its said that the FWD flow is better, the cold coolant from the radiator goes directly to the head and under the ITBs intake first, whereas the RWD flow lets the cold coolant into the water pump to the block first. The gains/looses are debatable, and each is "better" in its own respect, but in the end...it comes down to what you decide you want. Money plays a factor along with the purpose of the build and also if you do/dont want hard liines all over your bay. Priorities change between people, so im not saying to do either, you decide.

heres your options...
-----------------------------------------------------------------------------------------------------------------------
FWD Flow (how the motor is set up STOCK)

This is the option where you keep everything flowing like it was from the factory. although it sometimes means shelling out big bucks for the water line kits and moving things like your ISCV and other stuff. When done correctly, it looks clean, but you still have hardlines going all over the bay. You end up keeping the stock 20v water pump, exhaust side outlet, and the thermostat housing at the back of the head with all the stock sensors(or use the housing provided with the kit).

heres a link to the explanation of how the flow goes from the factory, along with a few other options.
http://www.toycrazy.net/tech/rwd20v.html

so you have a few aftermarket hardline kit options.
1. T3
2. SP Tec
3. SS Works
4. DIY
-----------------------------------------------------------------------------------------------------------------------
T3 http://technotoytuning.com/productdetail.php?p=780
T3 makes great products, and their customer service is par to none. you get to support real 86 enthusiasts, buy american made products/support the economy, and you wont have to wait months for the parts...usually. only problem with this kit-they leak, always! best fix is the Toyota "Oil Pan & Camshaft FIGP"

^picture from T3 website
-----------------------------------------------------------------------------------------------------------------------
SP Tec
simple and straight forward. need to relocate the ISCV, with the included bracket.

^picture from http://www.tokyoseven.com , see below...
buy here...
http://www.tokyoseven.com/T7/p...d=784
-----------------------------------------------------------------------------------------------------------------------
SS Works
this kit is legit. if i had the cash, this is what i would possibly be using. great reviews from everyone that gets it.
search for photos, every one i put up, dissappears after a few days
-----------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------
DIY Method
if you have access to mills and machining knowledge, build your own. you can also use the stock thermostat housing and ports, and run lines to the proper ports on the ae86 radiator, and go from there.

DIY links for ideas
http://forums.club4ag.com/zerothread?id=1684
http://www.my-acoustic.com/Car...r.htm
-----------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------

RWD Flow
you need a 16v water pump and backing plate, and to mod the upper water neck from the 20v that is right above the water pump. the flow will be different than the 20v had from the factory, with the cold coolant entering the water pump, then to the block first, unlike the 20v which it went to the head first. This rwd flow is said to cause cylinder #4 to overheat. While i didn't have a problem with it, i also haven't tracked my car yet. I would recommend a lower temp thermostat, 5 to 10 degrees lower. heres a pic of how the stock 86 rwd coolant flows.

^thanks to http://www.billzilla.org for the pic

Sam_Q's stuff
good products, many options to get exactly what you want. heres a link to his thread on c4ag to his website. very knowledgable guy, and willing to help explain your options. want the best bang for your buck? buy from this guy!
http://forums.club4ag.com/zerothread?id=83506

the Mr.John of JSP Method
simple and effective. only problem i foresee with this is sensor location. going stand-alone? might not be such an issue then.
http://forums.club4ag.com/zerothread?id=1012

My Method
not perfect but functioning and proven to work. these are one-off pieces, im not in production, so sorry, dont ask please.

i used my 16v water pump, made a by-pass plate for the rear of the head with a port for the heater, an exhaust side block off plate, and an adapter to mount the stock 16v upper water neck to the 20v head to utilize the 20v sensors.

rear by-pass plate with heater outlet

16v upper water neck and adapter w/sensors


welded a barb for the bypass tube...

exhaust side block off plate

16v backing plate

hard line made from aw11 mr2 line to to from heater to backing plate
bottom pic is mr2 line, top is after cut and weld.

heres how the upper water neck sits, just needed to find another hose that fit better since the port angles down a bit more.




Modified by morgan at 12:31 PM 4/20/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


PART 4-Spark
-----------------------------------------------------------------------------------------------------------------------
theres a few options for this, i will go over 3.
1. stock location for the distributor(firewall needs to either have a sledge hammer taken to it or cut a hole in the firewall and weld in a new box to clear the dist.)
2. distributor relocation kit(moves it to the front of the engine, and has the exhaust cam drive it.)
3. Coil Over Plug conversion(aka COP, using some newer ignition options, and a waste spark firing system on a stock 20v ecu.)
-----------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------
1. stock dist. location/modification to the firewall
not always the choice option, but effective and cheapest. With the 20v dist. being at the back of the head, when orientated for a rwd car, the cap sticks out too far. you need the firewall in that area to be moved back about 2". easiest way a BFH, but it looks like sh!t. heres a pic of my 86 when i got it. the po had a 20v in it, and went to town on the car.

even after some paint, i still couldnt stand this. didnt help that i had a 16v and a broken air box to change the vents for the fan.

when i finally did the 20v swap, it "helped"...me be lazy. i just covered it with some dynamat type material to keep the exhaust fumes out. didnt work though, and still looked like sh!t.

but at the end of the day, the dist. fit. only problem i had...getting it out if needed. i had to take the valve cover off, unbolt the cap holding the dist in place on the head, and unplug the wires. if that wasnt enough in such a small space, you then have to wiggle the dist. out and find the sweet spot. basically try every angle til you get it out, and repeat for installation. a real PITA.

-----------------------------------------------------------------------------------------------------------------------
2. relocation kit
you can find yourself one of these kits, but be prepared to pay upwards of $700 new. heres what they look like installed.

Garage Annex/SP Tec

cant remember the name of this brand but im a little leary about this...

only thing with these kits, you need to get different plug wires, since the stock ones arent long enough. i believe Sam_Q also makes his own kit, or its in the works.
-----------------------------------------------------------------------------------------------------------------------
3. COP conversion
while utilizing the stock coil for a tach signal, the stock igniter for the confirmation signal to the ecu, and a waste spark that works...this keeps you from shelling out $ for the relocation kit and you dont need to take the BFH to your car. pretty simple and straight forward.
heres a thread about all the different coils you can use and how to wire them.
http://forums.club4ag.com/zerothread?id=18900
i chose to go with the honduh d17 coils from a 2002-05 civic. (thanks Hector for the hook up)
how the stock 20v wiring is...

this is how i wired the COP's into the harness...

this is much cleaner and they fit under the plug cover. heres my current setup, after cutting out my entire firewall and welding in a new one that wasnt bashed in...


cleaner, and functional. some people have problems with the rpm's being limited to 4000 with the COP conversion, but it usually has to do with incorrect wiring.

Modified by morgan at 5:53 PM 1/3/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


PART 5-Fuel
there isnt really much to this. you need your stock gts in-tank fuel pump to be operational, and you might as well buy a new filter too. the stock ae86 feed line to the manifold isnt long enough, neither is the stock 20v line. so you can either cut them and add in a piece to lengthen it, or go with stainless braided lines.
-----------------------------------------------------------------------------------------------------------------------
Stainless Braided feed line
i read this thread below about it, seemed pretty easy. So i ordered up the materials from http://www.anplumbing.com and did it.
http://forums.club4ag.com/zerothread?id=40418
the fittings i got, 2 banjo bolts, makes it tough to get the line to go just right when the filter is in the stock location. then i ended up snapping a banjo bolt in half from over-tightening it, so i got some other parts and made a bracket to locate the filter higher up on the passenger side shock tower. just get crative, but be safe. it is gasoline afterall so lets try not to light our car on fire from a half-assed job. this is where quality really counts.


-------------------------------------------------------------------------------------------
by popular demand, heres the pressure gage parts i bought from summit racing...
*note*-i used a small o-ring on the banjo bolt up top to keep it centered in the Earl's fitting, you can see it in the pic of the banjo bolt. just push it all the way to the top so it doesnt impeed flow.


and heres the AN-fittings and stuff i bought(thanks to balmo for the info above and below)...
-Earl's banjo hose ends 807691ERL (buy 2 of these)
-3ft -6AN ss hose


Modified by morgan at 12:43 PM 2/3/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


PART 6-Wiring
this can be the most overwhelming part of the build, if your a DIY'er like me. many just send the 20v engine harness and the 16v engine harness off to be done by a pro, at the cost of $350-700. Im not a pro, but i have experience and its proven since my car runs, and will do it if you need me to. PM me if your interested.
you have 2 options for that route. Dr Tweak of Pheonix Tuning or mr220v.
Dr Tweak...
http://forums.club4ag.com/zero...=4780
http://forums.club4ag.com/zerothread?id=13939
mr220v...
http://forums.club4ag.com/zero...=2434
http://forums.club4ag.com/zerothread?id=13573
-----------------------------------------------------------------------------------------------------------------------
now if your thorough with your work, have good research skills, soldering skills, wire diagram knowledge, lots of free time, and a desire to do this yourself, heres a simple walk through. but be warned! its not easy, if you feel that it might be too much, dont do it, you will cause more damage, and spend more money in the long run. but lucky you, you dont have to go searching all over for the info, heres my collection of stuff that made it possible for me to do it.
You will greatly benefit from owning an FSM for your car. the Haynes manual also has the wiring diagrams too if you cant get an FSM.
FSM=Factory Service Manual
-----------------------------------------------------------------------------------------------------------------------
all the 20v pigtails can be sourced at your local junkyard. along with the MAP sensor from the 1993-97 corolla and the IAT sensor from any 90's toyota. the ECU plugs from the same corolla, other 90's toyotas and the same era hondas too. i brought parts with me, had them marked so they knew i wasnt stealing them and so i didnt pay for them again, and just matched them up. i cut about 6" off so theres something to work with.
i also suggest if your building your own, to buy a sacraficial harness, i recommend the 1993-1997 corolla, since you can use a bunch of its pigtails, the MAP sensor and the IAT sensor, along with the ecu plugs.
-----------------------------------------------------------------------------------------------------------------------
this site is a guys diary of a swap in his aw11 mr2. really good info and pics.
http://www.padandwheels.com
link to all the pigtails for the motor and what wire is what...
http://padandwheels.com/mr2/bl....html
Silvertop wiring diagram. similar to the BT, but consider the difference from AFM and MAP. still good in seeing how things are done up. i printed this out huge, taped all the pages together, and put it on the wall of my garage.
http://media.photobucket.com/i...m.jpg
this is just a little diagram i found...

silvertop ecu pin-out(manual and auto)
http://4age20v.blogsome.com/20...inals/
BT pin-out

a full list of what each wire does. for an ST, but only difference from a BT is the AFM/MAP. really helpful...
http://www.docstoc.com/docs/24...-1999
the site this was on, now charges for downloads, so heres some pics of the pages. PM me if you want me to email you a .doc copy.





read the REFERENCE section of club4ag. tons of info and pics to save and print out.
http://club4ag.com/technical_main.htm
-----------------------------------------------------------------------------------------------------------------------
heres an overview of how i routed the wiring harness when it was all done.

to do your own wiring, you need a few pigtails from your stock harness.
1. the "C" plug-the large black plug on the firewall

*photo courtesy of Grant @ club4ag. http://www.vems.hu/wiki/index....iring

from the underdash harness, you need this plug which goes to the ECU, well call it the "T" Plug. more so, you need to cut the plug off and re-run some wires to the 20v ECU. the B+, SP1, and WARN wires.
- the B+(black with red dots) is from the EFI main relay and provides power to the ECU and some sensors
- the SP1 is the speed sensor(blue/white)
- the BATT wire to the 20v ECU plug(provides constant power to ECU even when car is off, for memory)

*photo courtesy of nixeighty6 @clug4ag.com

heres the locations, on the ECU, just imagine the plug in there and see which wires you need.

*photo courtesy of club4ag.com Reference Section & Woody

and the "C*" plug, from the gts engine harness that plugs into Junction Box #4(JB#4) behind the passenger side kick panel. its the plug that im holding, you can see the difference between the other 2 for the ECU. what you want to do for this one is seperate the GTS harness and keep in tact the Wiper Motor and Washer Bottle Motor wires and pigtails and incorporate them into your 20v harness. you can cut the others, but dont cut the wiper/washer wires that are going directly to those 2 items, otherwise you get to solder those too, and why bother if its already complete. you also need to connect PIN#11(warning light)to the 20v ECU plug. the WARN or W(green/yellow) is the check engine light in the cluster. if you dont source a GTS cluster with this in it, wire up an LED or something.


-----------------------------------------------------------------------------------------------------------------------
so heres a few diagrams i drew to help you through this...KEEP IN MIND THAT THE COLOR I CHOSE FOR EACH WIRE ISN'T NECESSARILY THE COLOR FROM A 20V HARNESS, its only so you can distinguish between each. and if your building your own harness, then who cares...on with the good stuff aka archaic drawings i provided. you can tell me you love me at any time...
the POWER wire, for everything listed, comes from the "C" Plug PIN#2, with pics of the pigtails and the wires in question circled...

the E2 wire(sensor grounds-through the ECU) with pics of the pigtails and the wire in question circled...

wiring the coil and igniter. on the bottom of the pic is the pigtails, and what each wire is...

then the injectors, on the 20v ecu they are labeled "#1, #2, #3, and #4". connect each of those to the corresponding injector. the #1 injector is closest to the cam gears, the #4 being closest to the dist. side of the motor. you should have already wired the Power(B+) wires from the "C" plug on the firewall, so this is the last step with these.

then the O2 sensor, the B+wire should already be done, so only the E1, HT, and OX wires left. you should use a shielded wire for the OX, this is like a braided metal netting that goes around the wire and keeps there from being any "interference" in the signal to the ECU. only thing is, you need to connect the shield to the E2 wire down by the ECU. if you bought a sacrificial harness, find out which wire is shielded and use that one. i will cover the "E1" wire later under "ecu grounds".

next work on the Knock Sensor and the MAP sensor to finish them up.

then finish up the the VVT solenoid, EVAP purge valve, and the Intake Air Temp. Sensor.

then connect the ISCV and the TPS. the TPS has 4 pin-outs, but the Blacktop only utilizes 3, while the Silvertop uses all 4.

next is the ECU Water Temp Sensor"wt(E)", the Gage Cluster Water Temp Sensor"wt(C)", and the Oil Pressure Sensor wire. use the same wire from the 16v GTS harness if you want, just un-wrap the harness and pull it out so you dont have to solder it on the black firewall "C" Plug-PIN# 7. or just snip both ends and run a new wire.

then there is the distributor. the 4 wires need to be shielded together with the braided wrap, then connect the shield to the "E1" wire at the ECU. i went to the junkyard and pulled apart a 1995 camry harness for this wire bundle, shielded and ready to go. it was about 8 inches too long so i shortened it. spent $10, and about 30 minutes of my times, and it came with the correct pigtail iirc.

heres the grounds you need to hook up...

the starter power wire needs to be tapped into and ran to the ECU "STA" terminal, the "FC" terminal needs to be connected to the green/red wire of the COR, which can be accessed from the yellow "C*" Plug(pin#5) at the JB#4. and the "SP1" terminal at the same "C*" Plug too.

and the reverse light wires from the black firewall "C" Plug need to remain in tact...

------------------------------------------------------------------------------------------------------------------
*just about all pigtail pics taken from the http://www.padandwheels.com site for reference, love that site...
------------------------------------------------------------------------------------------------------------------
more to be added as needed...
chances are i mixed a thing up or 2, if you see something wrong, let me know and ill fix it. likewise if i left anything out.
feel free to ask any questions, ill do my best to answer.
ENJOY!
morgan

Modified by morgan at 3:52 PM 7/17/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


Extra info...

Motor Mounts
theres a pin in the block that needs to be removed, its on the intake side, at the bottom. sometimes they are really stuck in there, just drill a hole in the motor mount then, so you can mount it if you can pull it out. in the pic below, the pin is circled in red, and the bolt holes for the motor mount are highlighted in green. the bottom pic, from the 4age20v blogsome site, just shows you how the motor mount should look once on the block.


Modified by morgan at 12:28 PM 1/16/2012



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
zlidewayz
Member



Offline

2193 posts [99%]
CenCal CA

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


thank you morgan, this is nice



"Living the ae86 life" ...what other way to enjoi driving then to drive zidewayz

Thumbs up to Eric at RhysMillenRacing

Also in need of super clean Driver and Passenger Fenders email me

BEST FORM OF CONTACT= zmanae86@yahoo.com

marlono1
Member



Offline

384 posts [99%]
Socal CA

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


insane!!! the wiring looks do able with your write up!

also since am running coil packs i was wondering if you were having any problem with your tach??

my tach does not read since i am running gze coil packs and i have digi cluster installed...



---------------------------------------------------------------------------------------------------
1987-AE86
1985-Mr2(Sold)

too much drift mode falling from sky :thumbup:

morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (marlono1) » Reply  Edit


thanks guys. im using the stock 20v coil to drive the tach, but its the stock analog tach. it works fine. IF youre keeping the stock 20v coil in-line, you should be able to run the digi-tach. but dont take my word for it, i have no experience with the digital clusters. check the "Spark" section for the diagram on wiring up the COPs i used, i just fixed it.

***EDITED the Part 3-Cooling and Part 4-Spark, seems the whole beginning of each got cut out, anyways, its fixed now.***





haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
Grant
Member



Offline

3656 posts [86%]
San Jose ca

  » Reply  Edit


This is amazing. Great work man.



Stand Alone ECU tuning. Message me for details.

Looking to buy a corolla manual rack and a TRD 3 gear transmission.
*also wtb 4 point roll cage/bar for ae86 coupe

seymour86




Offline

1500 posts [99%]
Canyon Country CA

  » Reply  Edit


WOW good work!




rseymour86@gmail.com

Short Stroke conversions http://forums.club4ag.com/zerothread?id=111245

apex diff
Member



Offline

239 posts [100%]
irish sea

  » Reply  Edit


brilliant work....
im going doing this very shortly

thanks

morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

  » Reply  Edit


thanks everyone!

if anyone notices a mistake, please point it out so i can fix it.

...and Grant, thank you for the firewall plug write-up you did.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
rc.square24
Member



Offline

326 posts [100%]
Vancouver BC

  » Reply  Edit


How are you mounting the left hand side transmission brace on the block? the two bolt holes on the block end seem to point at an angle relative to each other?
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: (rc.square24) » Reply  Edit


im not using either of those braces. one bolts up, the other doesnt and with 4 12mm bolts holding the trans to the motor(and a few other people not having a problem when not using them) i just didnt bother. plus, my old 16v didnt have them either, so...



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
Jinxd
Member

Offline

2 posts [100%]
Adelaide Sa

  » Reply  Edit


hey quick question using COP ignition setup i dont need to have the igniter installed do ? i can just cut the plug and use the wiring correct?
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: (Jinxd) » Reply  Edit


you need the stock coil and igniter. just tap into the wires.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
zlidewayz
Member



Offline

2193 posts [99%]
CenCal CA

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


on your rebuild, did you ever work on the Freeze Plugs... what are the correct sizes and does anyone know if they come in a overhaul kit.



"Living the ae86 life" ...what other way to enjoi driving then to drive zidewayz

Thumbs up to Eric at RhysMillenRacing

Also in need of super clean Driver and Passenger Fenders email me

BEST FORM OF CONTACT= zmanae86@yahoo.com

morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (zlidewayz) » Reply  Edit


i replaced some on an old 16v, but dont remember the sizes. not sure about the overhaul kit including them but they are cheap, hit the dealer up. they should be the same for all 4a blocks. go with a later year to be safe.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
te27nTheEmeraldCity
Member

Offline

10 posts [100%]
Seattle Wa

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


hey i have a te27 that i'm planning on do this swap for, this might sound dumb but how do you attach the motor mounts since the 20v are fwd and i'm converting to rwd?

morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: my 20v'ed ae86 swap write-up... (te27nTheEmeraldCity) » Reply  Edit


the 4a block was first offered in the ae86(iirc) and thats rwd. the te72 is the same chassis, and probably a same or similar cross member since the 4ag has been put in there too. just use the motor mounts you currently have, they should work. or pick up a set from an ae86, they bolt right up with the exception of one pin on the intake side of the block that needs to be removed.

thanks for bringing this up, i forgot to do a "motor mount" section about removing the pin.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
te27nTheEmeraldCity
Member

Offline

10 posts [100%]
Seattle Wa

 Re: my 20v'ed ae86 swap write-up... (morgan) » Reply  Edit


thanks! i figured as much since so many people do the 20v swap but the whole fwd thing was tripping me up. your write up is going to be super helpful once i start building my motor. right now shes just stripped down completely, smoothing the engine bay, taking care of any dings then she'll be ready for the paint booth. is there any big differences between the black and silvertops i should take into consideration, besides age?
Sam_Q
Member



Offline

579 posts [99%]
Australia vic

  » Reply  Edit

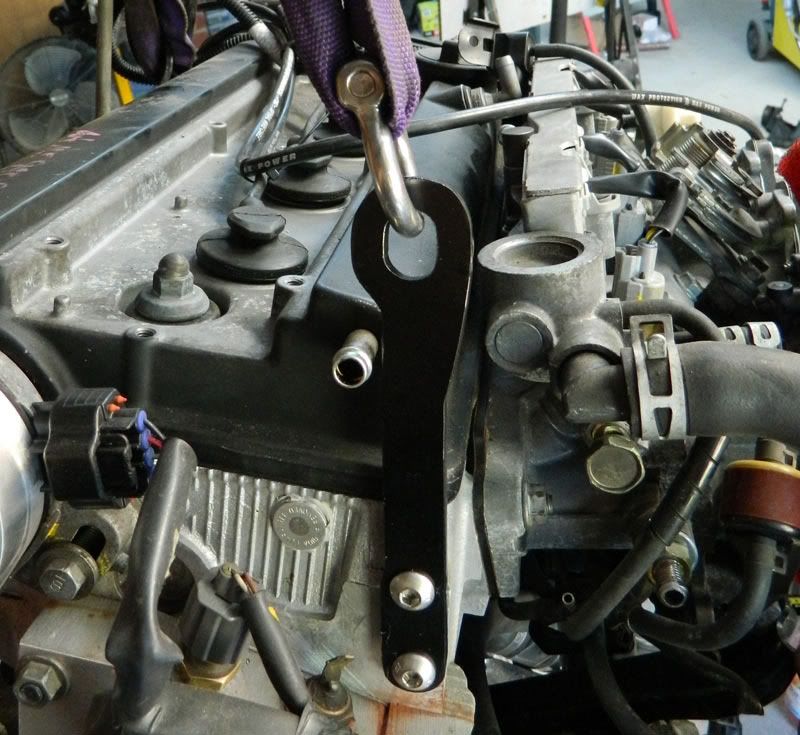

excellent guide, I have one to add to your list with a bit of self promotion, a RWD engine lifting loop:





My website - conversion parts, articles, services...

s-86.com

-20v RWD conversion parts for sale

morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: (Sam_Q) » Reply  Edit


thanks Sam, thats a great idea! i modified the stock one with all the vacuum lines(which i chopped off), but its still a bit cumbersome.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
rachithav
Member

Offline

47 posts [100%]
Colombo Western

 Re: (morgan) » Reply  Edit


Hey this is very clear write-up for any beginner.
Could you further show how to wire the Airconditioning system.
I do not know how to get the idle up when the A/C is switched on.
tried to ground the AC1 and ACT pins through a relay when the Compressor power is ON. But the idle kept on droping. Normally it idles around 1000rpm and with A/C it drops to 500-600rpm. Also is there a load signal to be given to the ECU when the lights are on to increase rpm?
Detailed explanation would be great.
Thanks man!
morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: (rachithav) » Reply  Edit


im in the process of doing a harness with a/c. once im done and it works, ill do another write up for that.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
c99ae86
Member



Offline

604 posts [100%]
SF Bay Area

 Re: (morgan) » Reply  Edit


great job on this write up, couldnt have been done any better!!!

i was wondering if i can get the info on the fuel pressure gauge mounted on top of the fuel filter? i want to do that on my 20v and also my 16v. also any info on installing if you have it. i dont have the stainless braid line, just stock if that matters.

morgan
Member



Offline

6446 posts [93%]
just be glad your not here, nj

 Re: (c99ae86) » Reply  Edit


Thanks. The banjo bolt p/n needed to mount the gage is in my build log a few pages back, links in my sig.



haha cali...i got one of you 86's, and your not getting it back.
my 20v in an 86 swap guide
my mess of an 86...
*east coast toyotas forum*
A fool takes no pleasure in understanding, but only in expressing his opinion.
c99ae86
Member



Offline

604 posts [100%]
SF Bay Area

 Re: (morgan) » Reply  Edit


finally found the page with the info. one question though, since my fuel filter is in the stock location (alot lower than where you put yours) theres no need for any modification to my banjo bolt right, so i should be able to buy the russell bolt and gauge and install them without any problems while still using the stock line. if i have to get a new braided line and fittings i will but if i can do it with the stock line than ill do it that way. thanks for the help.
 First  1 2 3 >  Last



» Return to Engine - 4A-GE 20V
Forum Jump
Quick Reply




ZeroForum 3.0 beta-8. Execute Networks Inc.



NOTICE to ALL who are involved in transactions, sale, purchase for listings in Classified sections of Club4AG.

Club4AG will not and can not enter into dispute or act as mediator for any disputes taking place in our web forums, and sections are merely designed to provide a communication channel for buyers and sellers. And because we are not mediators or a sales channel for transactions, we will not rate, or grade any sellers or buyers as we are not equipped to tally concrete facts for any parties involved, in any transactions.
Any and all actual transactions should be taken with normal precautions of finding and collecting information and securing your sale/purchase to satisfactory levels. All further communications of dispute or resolving any matter of transactions should be conducted outside of the forums.   We suggest you make note of as much information about the sellers and buyers, such as telephone number, email, physical address, etc, before doing any transactions, and use a protected methods like Paypal or other merchant services to secure your sales or purchases. Unlike eBay or Amazon, Club4AG does NOT take middle ground, serve as mediators, or keep, make available, provide, or record any information of anyone on this web for use in dispute resolutions, and Club4AG will NOT rate, grade, or give/receive feedback of anyone conducting sale or purchases here.  This site is provided for announcements of sale and wanted ads only, just as any newspaper classified ads, or bulletin boards in community centers.
